Low beam and running light


High beam



Ok heres what i did to hook mine up... figured id post a little how to... just becase.

You will end up with the lowbeam and running light on at the same time, and the highbeam still running off of your highbeam switch.

Alright First i took the Acerbis headlight spliced the grounds (both black) together so the 2 wires run into 1 wire for the lowbeam and the running light.

Then i took the Acerbis headlight and spliced the positives (1 white 1 red) together from the lowbeam and running light.

With that i ran them into the 3 slot connector (only using 2 slots) supplied with the Acerbis headlight.

Finally i took the 2 wires for the High beam (1 black (-), 1 white (+)) and just ran them into the 2 slot connector supplied with the Acerbis Headlight.





Now for the headlight Harness

First thing i did was clip off the stock headlight Connectors



Then I replaced the the Stock Headlight Connectors with the new ones Supplied with the Acerbis Headlight.
Low beam should be (green (-), Striped blue (+) )
High beam should be (green (-), Solid blue (+) )



Now for the tip over sensor.

You can either take it off of your stock headlight and remount it on the bike somewhere.



Or you could do what i did make a jumper out of just a piece of 14g wire i got at autozone. Then take the jumper and put it from the red to green wire inside of the connector and just tape it to the harness.





you can also clip off the Connector twist the red and green together and tape off the white all by itself. Either way you will have to do something with being the bike will not start without it.

Now mount that fu**er and go ride! :YEAH

Paky

ooo very nice man

where did you put all these cables

look mine ******* ugly

inolen

Wow, the wires on the back of that cyclops look a lot less prone to eventually pulling out like they do on the diamond.

Nine54f4i

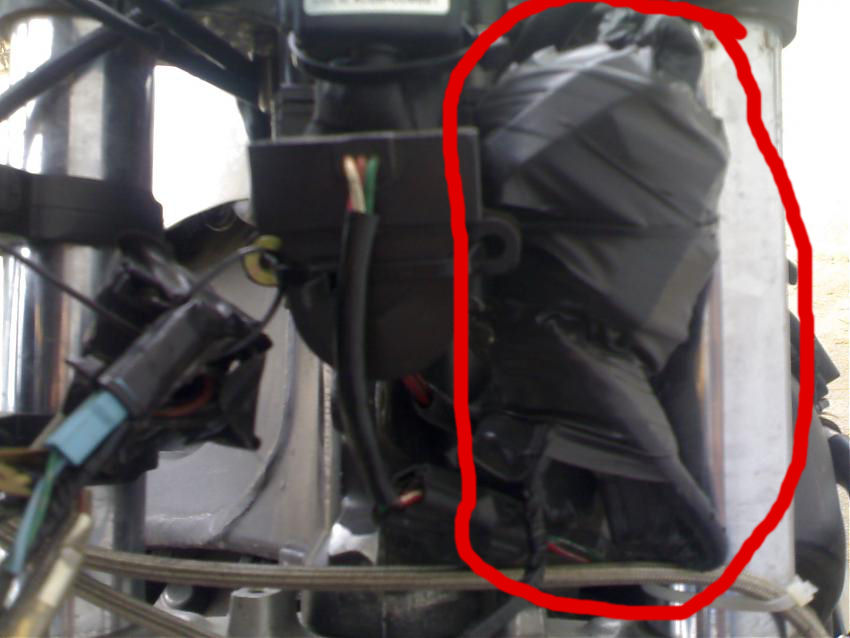

hahah looks like i put them exactly where you did! except mine are ziptied and not taped =P... and it looks like you remounted the tip over sensor any problems getting it to fit?

Paky

nop
just it must be 90 degres on the road like it was on old front mask(betwen lights)

bruno_z

I put mine under the tank...

cagedF-four-I

[quote=Nine54f4i;2543811]Low beam and running light





Ok heres what i did to hook mine up... figured id post a little how to... just becase.



PERFECT.....Thanks bro. My Cyclops will be here in a few days and I was wondering how the hell I was gonna mount that Bi^ch......... :YEAH SL Rocks!!!!!!

cagedF-four-I

There is room for all the wires under the tank?????

P.S. How the hell do you take off the Air intake tubes on the left and right of the tank?????? anyone

bruno_z

don't know bout you, but there's room on 900rr just in between airbox intake tubes...

cagedF-four-I

Oh ...ok, I thought you had a F4i.

cagedF-four-I

Aye NINE.....after the cyclops install do all the lights work again............brake....rear turn sigs.????

AlexF4i

Too many wires!!!

Why don't you guys get the manual and just wire everything up at the "Main Harness" and eliminate that entire headlight harness completely. Everything can be wired up to the main harness.... tip over, headlights, clutch switch.... and then you can just stick the end of the main harness into one side of the air box. Alot cleaner and neater.

cagedF-four-I

Whats up with the lights.....do they still all work????

Neosporin

So, that solid blue wire. Is it a light blue? I tried hooking the lamp up to it and nothing happens. And it happens to be the only blue wire without stripes.
