Dual caliper bracket?
11-25-2005, 09:32 PM
#1
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Dual caliper bracket?

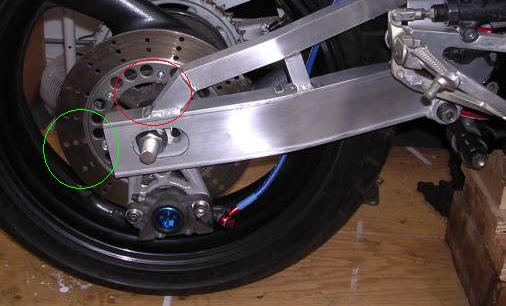

Is it easy for a welder to make a dual caliper bracket out of two stock brackets? On my 2000 R1 it would be VERY easy to weld two into one by putting one caliper at the opposite end of the other(red circle), but the swing arm is in the way. It looks like it would be tough to weld the second bracket to the rear (green circle) because there is not a flat spot on the rear of the bracket to weld up to. How does everyone else do this? Does anybody sell them? Racing 905 website looks like they sell them for the GSXR only.

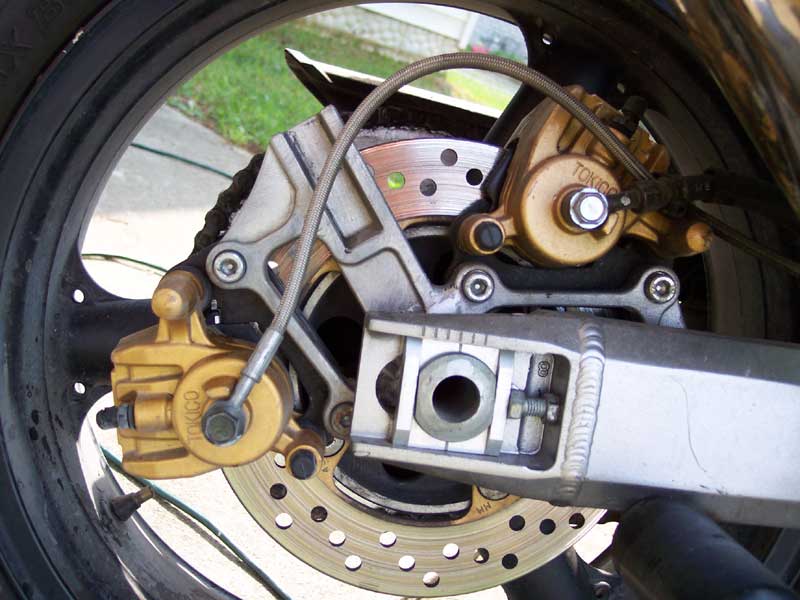

(NOT an R1 in the picture, just all I could find on google for an example)
(NOT an R1 in the picture, just all I could find on google for an example)
11-27-2005, 07:34 AM
#2
I Enjoy Posting At StuntLife!
Join Date: Oct 2004
Location: maui hawaii
Age: 47
Posts: 1,513
Re: Dual caliper bracket?
i have a 02 r1 with one caliper on the top and one on the bottom, the only problem with doign it that way is that you can not weld it together, if you did you wouldnt be able to slide the rotor in between the caliper, i'll snap a pic of it tomorow for you.
11-27-2005, 12:33 PM
#3
Registered User
Join Date: Jun 2004
Location: Toronto
Age: 42
Posts: 3,289
Re: Dual caliper bracket?
Why not go single caliper? The homemade masters Ive made work almost exactly as good as the FullThrottle I bought to replace it.......Less problems and less pads........
11-27-2005, 02:58 PM
#4
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Re: Dual caliper bracket?
Originally Posted by 808stunna
i have a 02 r1 with one caliper on the top and one on the bottom, the only problem with doign it that way is that you can not weld it together, if you did you wouldnt be able to slide the rotor in between the caliper, i'll snap a pic of it tomorow for you.
11-27-2005, 03:07 PM
#5
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Re: Dual caliper bracket?
Originally Posted by JohnnyP
Why not go single caliper? The homemade masters Ive made work almost exactly as good as the FullThrottle I bought to replace it.......Less problems and less pads........
I like the idea of two independant systems.
11-27-2005, 09:39 PM
#8
I Enjoy Posting At StuntLife!
Join Date: Oct 2004
Location: maui hawaii
Age: 47
Posts: 1,513
Re: Dual caliper bracket?

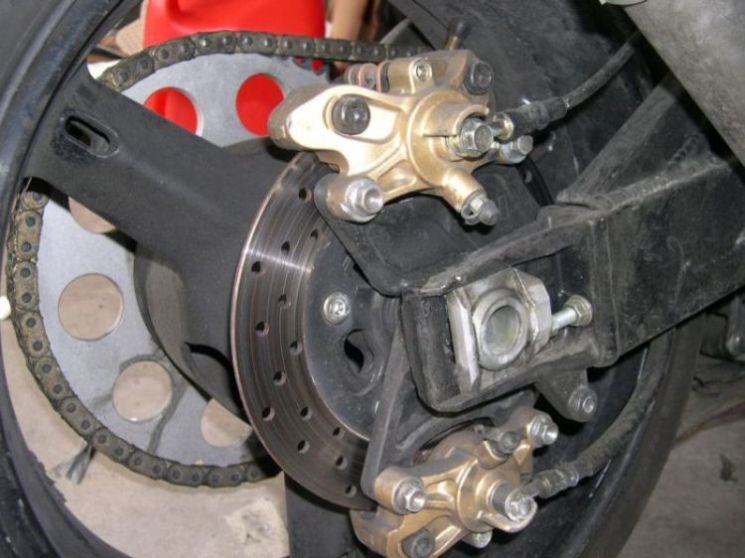

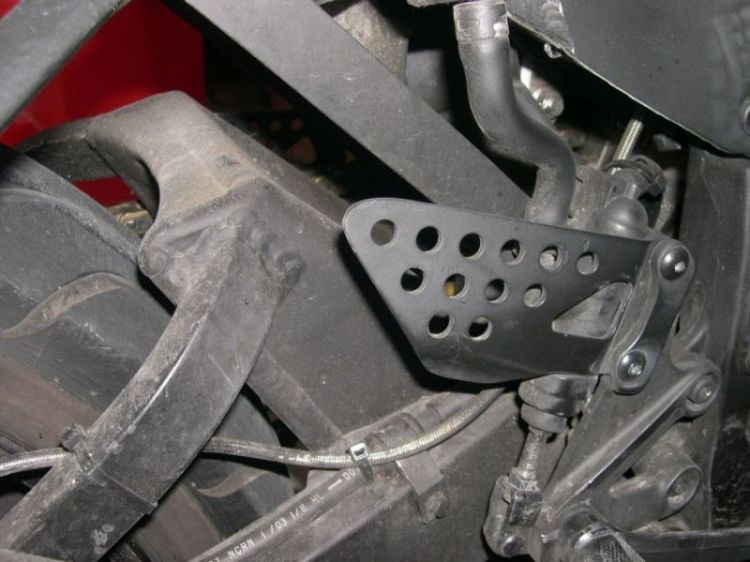

believ it or not the top caliper is where the factory caliper sits, teh bottom one is the add on. on your year r1 i think the bottom is the original? its not welded but i didnt have to weld it cause if you look at the second picture the swingarm is channeled fro the caliper bracket to slid in. the part on teh caliper bracket taht slids in is squared. so i basicly cut it in half and slid it in but. i should have cut it a little difrent, none the less it works so im happy. let me know if you need any advice. peace
11-28-2005, 08:37 AM
#11
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Re: Dual caliper bracket?
Originally Posted by DoodleF4i
didnt you have a 954? why did u go back to r1
As for the R1, I just bought it from the other guy I ride with. He used it, and I've rode it quite a bit in the last couple seasons. No problems so far, and nothing has busted on it. Everyone says the Yamaha's are very delicate but I am yet to find out. I'm sure I'd rather have and 02+ model with ther FI, but this will do for now.
11-28-2005, 08:40 AM
#12
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Re: Dual caliper bracket?
Originally Posted by 808stunna
believ it or not the top caliper is where the factory caliper sits, teh bottom one is the add on. on your year r1 i think the bottom is the original? its not welded but i didnt have to weld it cause if you look at the second picture the swingarm is channeled fro the caliper bracket to slid in. the part on teh caliper bracket taht slids in is squared. so i basicly cut it in half and slid it in but. i should have cut it a little difrent, none the less it works so im happy. let me know if you need any advice. peace
11-28-2005, 01:55 PM
#14
I Enjoy Posting At StuntLife!
Join Date: Oct 2004
Location: maui hawaii
Age: 47
Posts: 1,513
Re: Dual caliper bracket?
Originally Posted by louisvillerider
damn 808 man...you need to oil your chain
11-28-2005, 02:40 PM
#17
DNFstunt
Thread Starter
Join Date: Sep 2003
Location: Mississauga, Ontario
Age: 41
Posts: 4,503
Re: Dual caliper bracket?
Originally Posted by Houston terrell
hmm... Why wouldent you just use a clutch master off a kawa or something... then just run a steel line with a double banjo bolt to the Caliper??
I know you mean well, and in theory it would work...but no.
12-01-2005, 12:18 AM
#19
Registered User
Join Date: Sep 2003
Location: houston,tx
Age: 38
Posts: 373
Re: Dual caliper bracket?
Originally Posted by DNF
Do I really have to answer that? I know you mean well, and in theory it would work...but no.
I know you mean well, and in theory it would work...but no.That is how linked brakes work on bikes such as the black bird,uses the same master cylinder from the front brakes to control some of the rear braking.
