Needs help on set-up of 929 forks on F4i with keeping my stock fairings
09-01-2005, 03:02 PM
#21
Two Tone
Join Date: Apr 2004
Location: SOCAL
Age: 37
Posts: 3,044
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by Dano
TeamCLC has a 954 front end on his f4i and he was running full fairings for awhile, I believe all he had to ditch the ram air tubes. Where you at Tony?
i just now saw this thread. GSXRFUN has been pm'ing me and i sent him all the info he needs and pics. Let me know if you guys need any more info or pics. Dan the man, how is everything
09-01-2005, 05:28 PM
#22
I Enjoy Posting At StuntLife!
Thread Starter
Join Date: Feb 2004
Location: Valdosta, GA www.HoHeydesigns.com
Age: 50
Posts: 1,626
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
If you guys are looking to buy a GPR get it for an f4i. I was told it will fit right up on the 929/954 front end. For the bearings u will have to stay with he f4i bearings, top and bottom. This info was passed on to me from teamclc Thanks all I think everyone’s questions should have been answered but if anyone has got some more question post them up. Sh@t by the time we get through with this thread everyone will know what and what not to do for swapping over your F4i to 929/954 forks that’s awesome. :YEAH :YEAH :YEAH
09-02-2005, 12:08 PM
#23
Registered User
Join Date: Feb 2003
Location: Nothern Virginia
Posts: 1,825
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by GSXRFUN

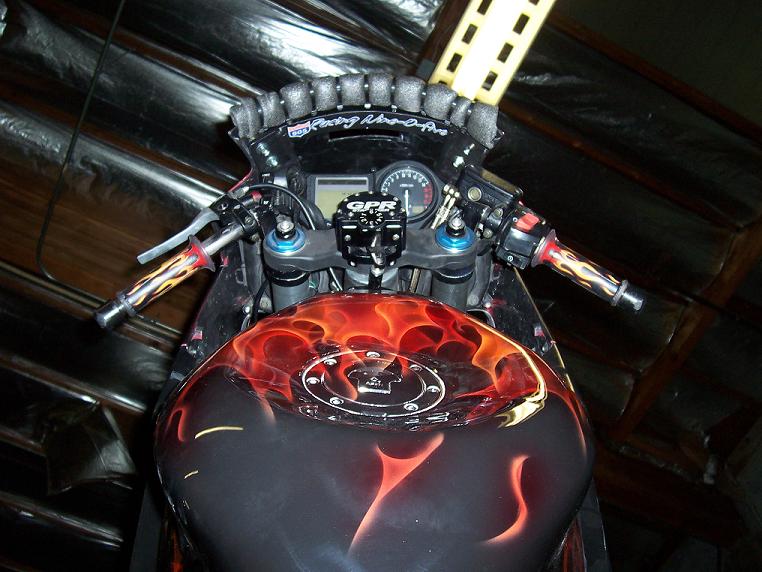

Okay guys here are a few very clear top view shots of another great fork swap complements of teamclc red flamed F4i
yoyoyo, what kind of clip ons are those????
they dont look like the stock 954 929 clip ons.
09-10-2005, 09:02 PM
#24
I Enjoy Posting At StuntLife!
Thread Starter
Join Date: Feb 2004
Location: Valdosta, GA www.HoHeydesigns.com
Age: 50
Posts: 1,626
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Hey guys,
Will the stock F4i ignition fit into the 929/954 top tree?
Will the stock F4i ignition fit into the 929/954 top tree?
09-10-2005, 11:55 PM
#26
I Enjoy Posting At StuntLife!
Join Date: Oct 2003
Location: BACK IN THE KCMO!!!!
Age: 37
Posts: 1,935
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
I just rock no ram air tubes, but I think I am putting mine back on soon....for some reason my stem stuff always comes loose.....oh yeah, i didnt have to cut my upper, but if you turn the bars full lock to the right, if the clutch lever is a the the right angle, if pulls the lever in......sweet...
09-26-2005, 04:02 AM
#27
Registered User
Join Date: Aug 2005
Location: NY and norcal
Age: 42
Posts: 32
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by standy
here's a couple pic of the way I made mine...
09-26-2005, 01:28 PM
#29
Two Tone
Join Date: Apr 2004
Location: SOCAL
Age: 37
Posts: 3,044
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by standy
Sorry it took so long, but here goes-
I have all the stock plastic, ram air tubes, covers and all. I did have to remove the resonance chamber on the top of each tube. I pulled the plastic ducts out of the upper, heated them up, and flattened them into a more oval shape to make more room for the fork legs and lower triple clamp on either side. I had to trim my upper a little on either side to make room for the bars, and I had to cut the air duct covers where they bend up to meet the upper fairing (the area that covers the resonance chambers). I made my own upper faining stay that bolts to the stock lower stay, because my bars kept hitting the stock one....no amount of notching was gonna cure that, mostly because I have a handbrake, and also because I run my bars almost straight out as opposed to angled back in the stock position. Because of my bar position, I also had to re-locate my gauges. I like to have them, so Hinks came up with a way to put them into the back of my headlight, which worked out pretty well. Its not too bad to do the conversion, it just gets irritating when everything hits. My bars still hit the upper at full lock, but if you don't run them out as far, you probably won't have much of a problem.
I have all the stock plastic, ram air tubes, covers and all. I did have to remove the resonance chamber on the top of each tube. I pulled the plastic ducts out of the upper, heated them up, and flattened them into a more oval shape to make more room for the fork legs and lower triple clamp on either side. I had to trim my upper a little on either side to make room for the bars, and I had to cut the air duct covers where they bend up to meet the upper fairing (the area that covers the resonance chambers). I made my own upper faining stay that bolts to the stock lower stay, because my bars kept hitting the stock one....no amount of notching was gonna cure that, mostly because I have a handbrake, and also because I run my bars almost straight out as opposed to angled back in the stock position. Because of my bar position, I also had to re-locate my gauges. I like to have them, so Hinks came up with a way to put them into the back of my headlight, which worked out pretty well. Its not too bad to do the conversion, it just gets irritating when everything hits. My bars still hit the upper at full lock, but if you don't run them out as far, you probably won't have much of a problem.
the bike is streetfightered for right now so i'll take some better pics for all u guys that need to see. It will be easier to see how its set up Last edited by Tony Carbajal; 09-26-2005 at 01:32 PM.
09-26-2005, 02:02 PM
#30
LAWN JOCKEY
Join Date: Mar 2003
Location: Royal Oak, Mi.
Age: 45
Posts: 1,543
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by teamclc
jeeeze, i dont get it, besides the ram air tubes. mine bolted right up. racing905 made me one of their stunt stays but it wasnt made special to work with the new front end or anything. I just mounted all my fairings right up n had no problems. the bike is streetfightered for right now so i'll take some better pics for all u guys that need to see. It will be easier to see how its set up
the bike is streetfightered for right now so i'll take some better pics for all u guys that need to see. It will be easier to see how its set up
09-26-2005, 04:45 PM
#31
Registered User
Join Date: Aug 2005
Location: NY and norcal
Age: 42
Posts: 32
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
word... let me know what goes on with it...
and if a 905 stay would work just as well...
i have cracked ferrings, wanna figerglass them back together wheni do the front end swap, but i kinda want them all lineing up properly...
my hand brake is in the mail as well... and i was plannign on running the clipons above the tripple tree... so any info would help. thanks agen.
and if a 905 stay would work just as well...
i have cracked ferrings, wanna figerglass them back together wheni do the front end swap, but i kinda want them all lineing up properly...
my hand brake is in the mail as well... and i was plannign on running the clipons above the tripple tree... so any info would help. thanks agen.
10-22-2005, 08:37 PM
#34
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings

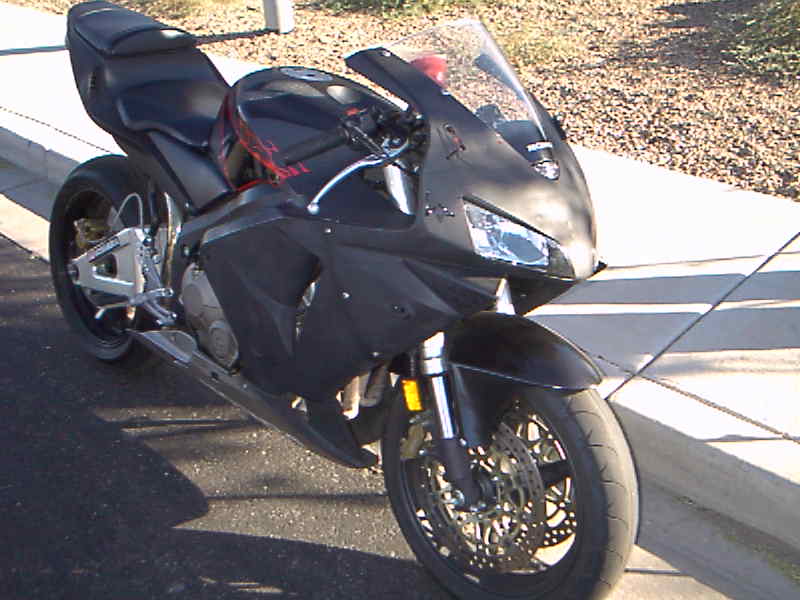

heres 03 600rr with 954 front end conversion. No modifications.... only one prob, lower clamp will cantact headlight houseing under full turn.... so don't get into any tank slappers
10-22-2005, 09:01 PM
#35
I Enjoy Posting At StuntLife!
Thread Starter
Join Date: Feb 2004
Location: Valdosta, GA www.HoHeydesigns.com
Age: 50
Posts: 1,626
Re: Needs help on set-up of 929 forks on F4i with keeping my stock fairings
Originally Posted by 12inar1
which front fender you gotta use?
