Tip for 905 cage rollover problem
07-24-2005, 08:06 PM
#1
I Chose to No Longer Post
Thread Starter
Join Date: Jul 2004
Location: San Bernardino,CA
Age: 42
Posts: 2,320
Tip for 905 cage rollover problem
Heres a tip for the 905 cages rolling over onto your clip-ons and upper
......Do a google search for DELRIN. You should be able to find lengths of 1" diameter delrin, and theyre pretty cheap for a length of it. Cut to a length where itll bottom out against the bolt, and stick out about 2 inches. Then stick it in the forwardmost upper motormount bolt tubing, bottomed out against the bolt. Bingo, easy and affordable sliders.
Sometimes, itll end up a little on the loose side......just put a little tape around it to thicken it up.
If it breaks off clean withthe end of cage tubing, just stick a screw into the delrin and pull it out using that
Your welcome
......Do a google search for DELRIN. You should be able to find lengths of 1" diameter delrin, and theyre pretty cheap for a length of it. Cut to a length where itll bottom out against the bolt, and stick out about 2 inches. Then stick it in the forwardmost upper motormount bolt tubing, bottomed out against the bolt. Bingo, easy and affordable sliders.
Sometimes, itll end up a little on the loose side......just put a little tape around it to thicken it up.
If it breaks off clean withthe end of cage tubing, just stick a screw into the delrin and pull it out using that
Your welcome
07-25-2005, 01:00 AM
#4
Registered User
Join Date: Jul 2004
Location: Norwalk, CT
Age: 41
Posts: 420
Re: Tip for 905 cage rollover problem
i make my own sliders as well
i bought a foot of delrin from mcmaster carr and turned them on my milling machine and for 9.95$ i made my own sliders, actually for my cage and a foot is enuff for like 4
i bought a foot of delrin from mcmaster carr and turned them on my milling machine and for 9.95$ i made my own sliders, actually for my cage and a foot is enuff for like 4
08-29-2005, 04:02 AM
#8
Two Tone
Join Date: Apr 2004
Location: SOCAL
Age: 37
Posts: 3,044
Re: Tip for 905 cage rollover problem
Originally Posted by LivingCanvas
Bump to the top for any one that hasnt seen this
I had a set of these one time, Worked real good, then i got jacked by some dude on another f4i on the way to vegas.
This dude seems to come up on all my parts. I better lock my bike up tonight
08-29-2005, 08:45 AM
#11
Registered User
Join Date: Nov 2004
Location: ny
Age: 50
Posts: 64
Re: Tip for 905 cage rollover problem
i asked aaron @ 905 about a slider for his cage. he said at this point it was bad idea. im thinking his logic was to much stress or added leverage to the motor mounts or threads.
08-29-2005, 07:27 PM
#12
www.mxdcages.com
Join Date: Apr 2004
Location: CA
Age: 55
Posts: 1,876
Re: Tip for 905 cage rollover problem
Originally Posted by teamclc
I had a set of these one time, Worked real good, then i got jacked by some dude on another f4i on the way to vegas. This dude seems to come up on all my parts. I better lock my bike up tonight
This dude seems to come up on all my parts. I better lock my bike up tonight
08-29-2005, 07:39 PM
#14
Registered User
Join Date: Aug 2004
Location: Anaheim, CA
Age: 45
Posts: 1,206
Re: Tip for 905 cage rollover problem
Originally Posted by got circles?
look you got them free,and you said i could use it,and you know im gonna give you another set.
08-29-2005, 11:05 PM
#15
I Chose to No Longer Post
Thread Starter
Join Date: Jul 2004
Location: San Bernardino,CA
Age: 42
Posts: 2,320
Re: Tip for 905 cage rollover problem
Originally Posted by Disturbed6R
Does it break everytime youdrop it?
08-29-2005, 11:21 PM
#16
Registered User
Join Date: Nov 2004
Location: South of Boston, 781
Posts: 2,277
Re: Tip for 905 cage rollover problem
Originally Posted by jny
i asked aaron @ 905 about a slider for his cage. he said at this point it was bad idea. im thinking his logic was to much stress or added leverage to the motor mounts or threads.
Naw dude... that POS cage will rip apart before the motor mount threads give.
08-30-2005, 12:08 AM
#18
Two Tone
Join Date: Apr 2004
Location: SOCAL
Age: 37
Posts: 3,044
Re: Tip for 905 cage rollover problem
Originally Posted by got circles?
look you got them free,and you said i could use it,and you know im gonna give you another set.
No U LOOK,
I was just messin with ya and i know u'll hook me up with another set cuz i hook u up with stuff all the time
08-30-2005, 01:11 AM
#19
Registered User
Join Date: Nov 2004
Location: South of Boston, 781
Posts: 2,277
Re: Tip for 905 cage rollover problem
Originally Posted by teamclc
did u pull that part of the cage back or did it brake that far back. I have never seen a cage brake that badly before.

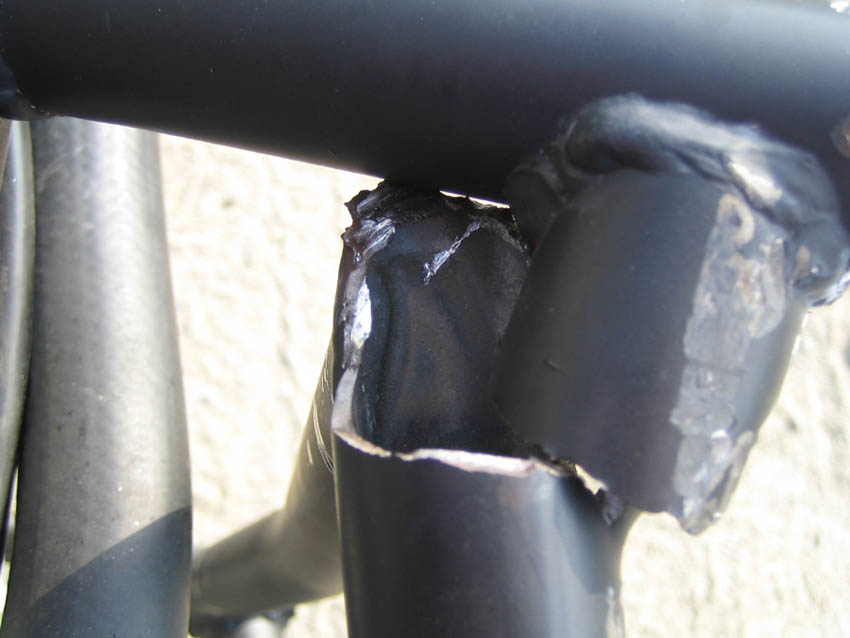

I pulled the mount tube back for that pic, but it broke around all the welds and was just hangin there.

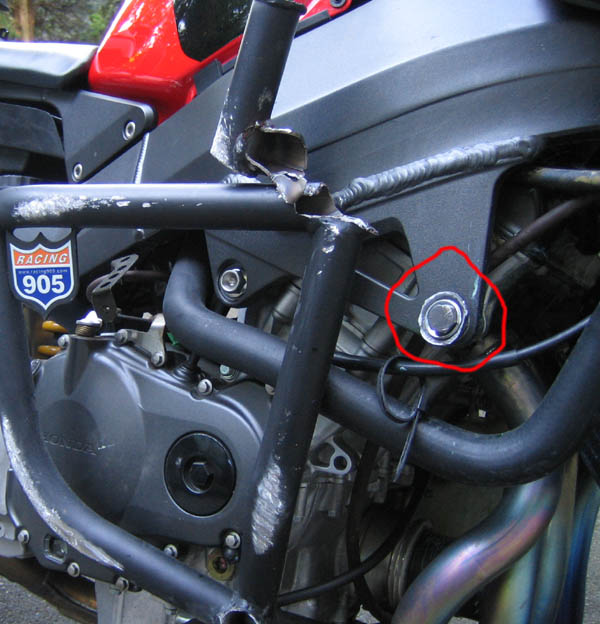

It looked like this before I moved the mounting tube.
