has anyone ever swapped front ends on their 03-04 636?
thats it



Im swapin both bikes right now
Puttin an 05 zx10 on one. And a 05 06 636 on the other.



alot of peolpe are use`n the 05-06 forks so they dont break & you eat ****..



what up ,what all is involvwd in the 10 conversion????????



I'm thinking about doing this as well. Do you have to use the 05, 06 triple?

Will the 04 axle work with the 05 forks? Someone post up some answers please!



not sure,but if you wont to use the 04 axle,swap the front wheel bearings out



Yea swapping the bearings out is easier said then done LOL.

Actually I'm using a 05 636 front wheel and an 04 axle and everything bolted up fine so maybe you don't need to swap the bearings



If you use the 05 06 636 forks you will need a fender too.The axle works on them too you have to use the 05 06 636 lower tripple but you can use eather top tripple for them.

for the zx10 swap you have to press the 03 04 stering stem out and press it into the zx10 lower tripple cause the zx10 one is too short and use eather top tripple. You have to use the zx10 axle pluse spacers for it. and you can use a zx10 or 05 06 636 fender.



Whamey.... Dan layin it down.

This guy will have the 05/06 front end on my 03/04 as soon as I get a fender.

Anybody know how to space the 05/06 rear wheel in the 03/04 swingarm? Haven't tried yet but I'm guessing I'll have to make spacers unless I use the 05/06 swingarm.



the 05 06 all I was told is you just need 10mm spacers for the calpers.. it'll work with 04 tripple



Where's Jonny P when you need him? hahaha



just swapped my front end and rear end out.05-06 swingarm and forks and the wheels on my 04 636.For the front end I just left my 03-04 triples on there and just slid the fork tubes up and bolted the rest right up.i gotta gpr dampner for it and wasnt sure if the newer triples would not work with the dampner.i dunno,didnt feel like messin with it.



can you use an 03-04 front wheel with 05-06 rotors, forks, calipers? 03-04 and 05-06 triples are basically the same geometry right?



yes u can and it bolt right up.


lower triple from 05/06 is an inch shorter than 03/04



yo asscrack assault u should gimmy those 05 forks before my 04 tubes get me killed



sweet :YEAH
thanks for all the good advice guys
the zx10 sounds like a good idea



I have 07 forks and rotors on my 03. with an 03 wheel. also using 03-04 triples. everything bolts right up. dont know about the rear though.



ok,

05 forks Are exactly the same as the 03/04 except for two things

You must use 05/06 rotors with 05/06 forks

And they are made by Showa..

Do not use 05/06 tripple on 03/04 frame cause the stem on the 05/06's is shorter and you cannot USE the 03/04 top tripple clamp on the 05/06 lower tripple because the stem is skinner at the top so you'l have to creat some kinda of spacer which would be a pain in the ***...

Both forks are 30 1/2 inchs and same width at the clamps... so use your 03/04 tripple trees with the fork conversion. but you need the larger rotors to accomidate the new caliper distance on the forks.



Good info Wheeliest.

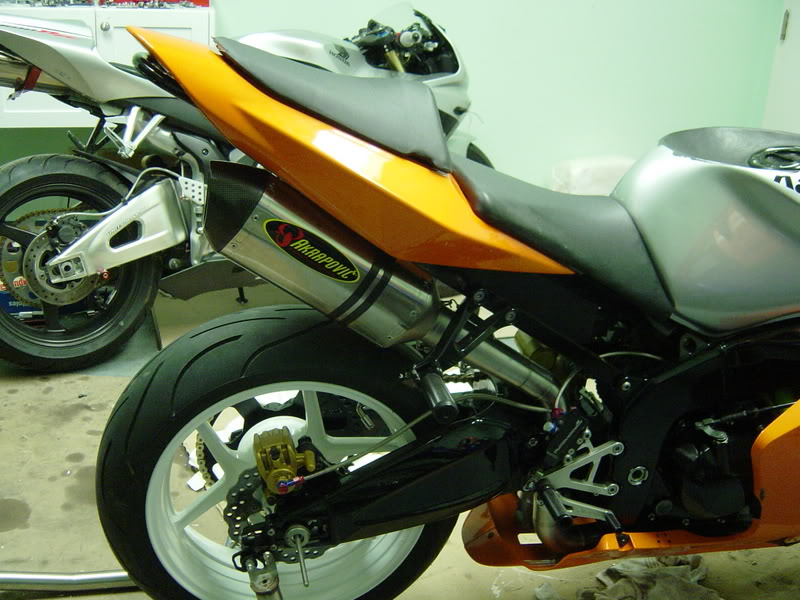

Hey weren't you the guy that put an 05/06 rear wheel in an 03/04 swingarm??? Pics?



I would be the first to do that as far as I know, did that more then a year and a half ago...Because when I asked on all the Kawi fourms everyone said it was not possible without the 05 swingarm swap....But Ive done it both ways
