freestyle ingenuity handlebar risers....
12-04-2006, 02:29 PM
#1
Registered User
Thread Starter
Join Date: Dec 2005
Location: SOUTH BAY, CA.
Age: 37
Posts: 3,245
freestyle ingenuity handlebar risers....
does anyone know how good these are... and how exactly do you attach the risers to the triple clamp.. the add says no drilling needed... but i dont know??
12-04-2006, 03:29 PM
#5
Registered User
Thread Starter
Join Date: Dec 2005
Location: SOUTH BAY, CA.
Age: 37
Posts: 3,245
Re: freestyle ingenuity handlebar risers....
Originally Posted by AsphaltAssault
just get tag clamps and drill the upper triple clamp they are a third of the money. its for an f4i right?
alright.... sounds easy.... so you just use the stock honda upper triple clamp.... **** it im gonna get the tag clamps..
12-04-2006, 04:13 PM
#11
Registered User
Join Date: Dec 2005
Location: northeast
Posts: 560
Re: freestyle ingenuity handlebar risers....
ya you can get tags in 1-1/8 and 7/8 so its what ever you want for bars i run protaper 1-1/8 carmichal(dont know the spelling lol). to put them on you need to drop your tubes in the forks a little not much.
heres some pics

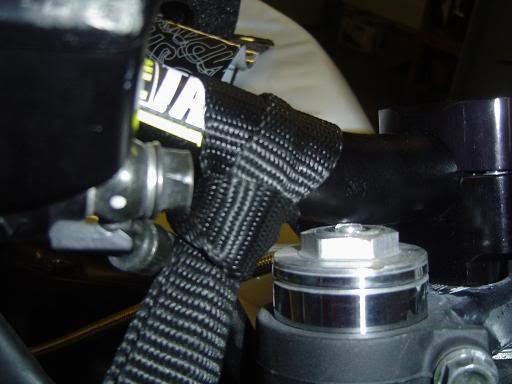

heres where the tube will sit (its not hittin the bar its real close though)

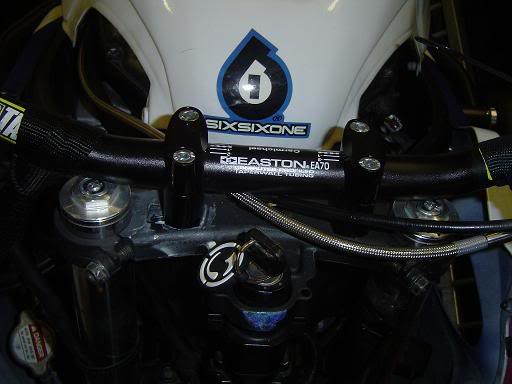

front view

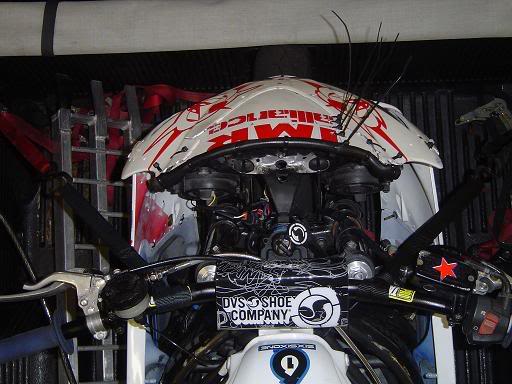

heres the sky shot with pad
heres some pics
heres where the tube will sit (its not hittin the bar its real close though)
front view
heres the sky shot with pad
12-04-2006, 04:18 PM
#13
Registered User
Thread Starter
Join Date: Dec 2005
Location: SOUTH BAY, CA.
Age: 37
Posts: 3,245
Re: freestyle ingenuity handlebar risers....
Originally Posted by AsphaltAssault
ya you can get tags in 1-1/8 and 7/8 so its what ever you want for bars i run protaper 1-1/8 carmichal(dont know the spelling lol). to put them on you need to drop your tubes in the forks a little not much.
heres some pics
heres where the tube will sit (its not hittin the bar its real close though)
front view
heres the sky shot with pad
heres some pics
heres where the tube will sit (its not hittin the bar its real close though)
front view
heres the sky shot with pad
did you HAVE to buy aftermarket brake lines???
12-04-2006, 04:26 PM
#16
Registered User
Join Date: Dec 2005
Location: northeast
Posts: 560
Re: freestyle ingenuity handlebar risers....
factory fx makes it. any parts unlimited dealer can get you one look in the 06 dirt catalog. im a parts unlimited dealer thats how i know what book its in. some of my buddies got new lines but i was able to get away with my stock one. i didnt zipty it to the forks though so it really just hanging there but it works.
Last edited by AsphaltAssault; 12-04-2006 at 04:28 PM.
