Tip Sensor Mod For F4i
#1
Tip Sensor Mod For F4i

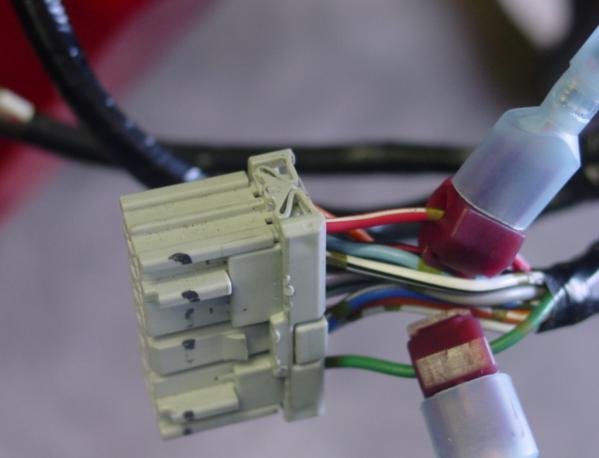

Alright, I did the search thing and after 2 hours I still don't have an answer. I know that you have to jump the green and red wires, but will that make my headlight stop working? I was going to do it like this but it says that my headlight will quite working if I do it before the clip. If anyone can let me know I'd appreciate it. Alright heres the pics that I have but let me know as soon as possible. Thanks
-Jesse-
-Jesse-
#2
Re: Tip Sensor Mod For F4i
Cut the red, green & white wires from the harness. Connect the red and green wires together and cover the white wire to keep it from shorting out.
#3
Re: Tip Sensor Mod For F4i
The green wire is a ground. So basically ground the red one with the thin white stripe.
Its on the headlight harness because of its location on the bike. The circuit isnt really related to the headlight.
Its on the headlight harness because of its location on the bike. The circuit isnt really related to the headlight.
Last edited by MikeM; 07-24-2006 at 07:25 PM.
#5
Re: Tip Sensor Mod For F4i
So if I do it like in the pic I'll be fine? I really don't want to cut all of the wires up. Thats all I really want to know I guess, I just don't want to cut up the wires. Thanks
-Jesse-
-Jesse-
#7
Re: Tip Sensor Mod For F4i
Originally Posted by Turnin20s
So if I do it like in the pic I'll be fine? I really don't want to cut all of the wires up. Thats all I really want to know I guess, I just don't want to cut up the wires. Thanks
-Jesse-
-Jesse-
Edit: Just do like they said, get some wire/paperclip and run it in between then 2 and tape it up.
Last edited by inolen; 07-24-2006 at 08:02 PM.
#8
Re: Tip Sensor Mod For F4i
Well I'm not taking my upper off and I still have to use the clip so everything still works, so should I a. remove the tip sensor completely from the bike and wire the green/red together and tape off the white or b. leave the tip sensor in place and cut the green and red wires before the harness and wire them together? I appreciate the help and I'm sorry if I'm being retarded LOL. If I can't do it like the pics I'd rather just get rid of the tip sensor and wire it up.
-Jesse-
-Jesse-
#10
Re: Tip Sensor Mod For F4i
Originally Posted by crtchrktrcr
hold the tip sensor in your hand... cut the 2 outside wires from it,, connect them.. that will leave the white wire in your hand holding the tip o n, now cut that and tape it off.. DONE
-Jesse-
#11
#12
Re: Tip Sensor Mod For F4i
when does the tip sensor cut off the engine ?? at 12 oclock, or when the bike gets laid on its side ? or tall endo's ? or ?...... have any of you felt this ? I have a friend who rocked an f4i, and did 12's all day etc.and wheelies and endo's and he says he never modded this sensor, and it never cut out .
#13
Re: Tip Sensor Mod For F4i
Originally Posted by ExtremeAcres
when does the tip sensor cut off the engine ?? at 12 oclock, or when the bike gets laid on its side ? or tall endo's ? or ?...... have any of you felt this ? I have a friend who rocked an f4i, and did 12's all day etc.and wheelies and endo's and he says he never modded this sensor, and it never cut out .
then he's lucky to still have a bike
